New Holland Transmission: Types, Parts, and Oils for Tractors

New Holland offers several transmission architectures depending on the ranges and applications. The Dynamic Command10 semi-powershift 8-speed transmission equips the T5 and T6 models from 110 to 180 hp, while the Auto Command10 continuously variable transmission takes over on the T7 and T8 models for larger scale farming operations.

Since 2026, the T4.120F AutoCommand integrates an in-house developed CVT capable of reaching 50 km/h at only 1,780 rpm — a significant advancement for specialized tractors.

Each transmission type requires specific parts, dedicated oil, and precise maintenance intervals. Improper gear shifting or incorrect oil can significantly reduce the lifespan of the entire drivetrain.

How Does a New Holland Tractor Transmission Work?

• The transmission transfers engine power to the wheels and PTO via several mechanical components.
• The main clutch disconnects the engine from the gearbox during gear changes.
• The dual-clutch transmission allows shifting between gears without noticeable power interruption.
• The differential distributes torque between the wheels to adjust traction according to the terrain.
• The front axle transmits motion to the steering wheels on four-wheel drive tractors.
• On a CVT, a hydrostatic variator continuously adjusts the transmission ratio without fixed gears.
• The entire system is electronically controlled on recent models, optimizing fuel consumption and field performance.

T6 and T7 Transmissions: Dynamic Command and Auto Command

The Dynamic Command10 stands out with its ability to perform near-instantaneous direction changes, a decisive advantage during loading or end-of-field plowing tasks. Manufactured at New Holland's Modena plant in Italy, it was designed directly from farmers’ field feedback.

The Auto Command10, on the other hand, eliminates fixed gear steps: the operator simply sets the target speed and the transmission continuously adjusts the optimal ratio. This reduces fatigue during long workdays and optimizes fuel consumption over large areas.

These two transmissions do not share the same oils or wear parts. Confusion during servicing can cause costly damage to clutches or the hydrostatic variator.

TM, T5000, and TN Transmissions: Classic Ranges

• The TM, T5000, and TN ranges use synchronized mechanical gearboxes without complex electronic management.
• TM tractors (TM115, TM125, TM150…) produced between 2000 and 2007 feature an 18x6 powershift transmission.
• The T5000 range, marketed in the 2000s, offers a 12x12 mechanical gearbox valued for its field reliability.
• TN models (TN75, TN95…) target versatile farms with a robust and easily repairable mechanical architecture.
• These transmissions are particularly sought after on the used market since their parts remain available and less costly.
• Diagnosing faults on these ranges does not require specialized electronic tools, unlike Dynamic Command10 or CVT models.
• The lifespan of these gearboxes often exceeds 10,000 hours with regular oil and filter maintenance.

Used New Holland Transmission Parts

At TMC Bejenne, the stock of used New Holland transmission parts covers a wide range of models, from the TM series to T6 and T7. Each part is inspected before sale, ensuring reliable traceability and avoiding unpleasant surprises during reassembly.

Choosing used parts on these components represents real savings: a used gearbox or differential may cost two to three times less than a new original part without compromising durability if sourced from a tractor in good overall condition.

Compatibility remains the top priority. A driveshaft designed for a T6.155 model does not necessarily fit a T6.140, even if both belong to the same generation.

Driveshaft and Front Axle

• The driveshaft mechanically connects the gearbox to the front axle on 4WD tractors.
• On T6 and T7 models, this shaft includes universal joints at both ends, subject to gradual wear.
• The driveshaft crosspiece is the most frequently replaced part, typically after 5,000 hours of use.
• The front axle contains a wheel reducer and a differential whose bevel gears require precise clearance during assembly.
• A SuperSteer front axle, available on some T4 and T6 models, allows a steering angle greater than 55°, reducing turning radius.
• Front axle bearings should be replaced in pairs to avoid imbalance which accelerates differential wear.
• The exact front axle reference varies according to the reduction ratio chosen when ordering, determining the replacement part choice.

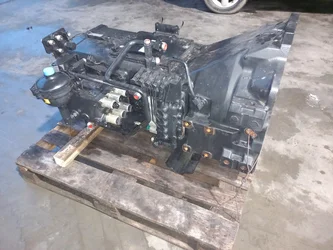

Gearbox and Differential

The gearbox accounts for the most costly failures on used New Holland tractors. Synchronizers and shift forks wear progressively, especially on powershift gearboxes of TM115 and TM150 models heavily used in front loader operations.

The rear differential requires special attention: excessive play on the bevel gear results in a dull noise when cornering under load, an alert sign not to be ignored.

On recent T6 and T7 models, the electrohydraulic differential lock replaces old mechanical controls — a sensor failure can mimic a total transmission defect while the gearbox itself remains healthy.

At TMC Bejenne, available used gearboxes and differentials come from dismantled tractors with known mileage history, allowing selection of parts with coherent wear levels.

Gears, Sleeves, and Bearings

• Gearbox gears transmit torque between the primary and secondary shafts; their teeth chip under repeated overload.
• A cracked gear produces a rhythmic clicking sound that intensifies proportionally with engine speed.
• Transmission drive sleeves engage gears; their splines corrode if the oil is degraded.
• On TM and T5000 models, the slow gear sleeve is the most stressed part during low-speed traction work.
• Ball or taper roller bearings in the gearbox must be replaced as a complete set to ensure uniform alignment.
• A failing bearing is detected aurally by continuous rumbling, distinct from the impact noise of damaged gears.
• The bearing reference is engraved on the outer ring and should be checked before ordering to avoid incompatible assembly.

New Holland Transmission Oils by Model

The choice of transmission oil directly impacts the longevity of synchronizers and multi-plate clutches. New Holland recommends its own Ambra range, specifically developed to meet the thermal and mechanical demands of its gearboxes.

For TM and T5000 ranges, the recommended specification is Ambra Mastertran Ultraction, a 10W-30 oil compatible with powershift gearboxes and front axles. On T6 and T7 models equipped with Dynamic Command10 or Auto Command10, New Holland requires Ambra Multi G 134, whose formulation protects wet clutch discs against cold sticking.

The standard oil change interval is set at 500 hours for the main gearbox, but drops to 250 hours for the front axle on models working in muddy conditions. Using generic non-approved NH 410 B oil can cause hydrostatic clutch slippage from the first hours of operation.
